STANDARD BUILDING SYSTEMS

This section gives guidelines on the most commonly used structural frames by Profiles RH LLC. These are considered to be the most economical designs and cater to a wide variety of usages.

For each type of frame (section 3.2 to 3.7), a load table is given showing the clearance and reactions. This is a very handy data for the preliminary design of foundations and pedestals.
Section - 3.8 to 3.10 is load table for canopies generally used for parking bays.

For special conditions Profiles RHF can provide the designer/consultant with data required for preliminary designs.

Design Loads

Design loads considered are live load of 0.57Kn/m and wind load 130km/hr. These are the loading required by most of the local bodies in Middle East.

Bay Spacing
Bay spacing is considered as 7.5meters from the point of view of economy. Spacing as wide as 12 meters and as low as 4meters can be accommodated but will be at the overall increase in cost.

Eave height
Eave heights of 4meters, 6meters and 8meters are considered in this section. These are the height requirement for most of the structures. However heights up to 16 meters can be produced by Profiles RHC LLC.

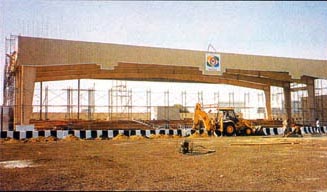

Idex Abu Dhabi 50m Clear Span
